Special Impeller-3

Blogs

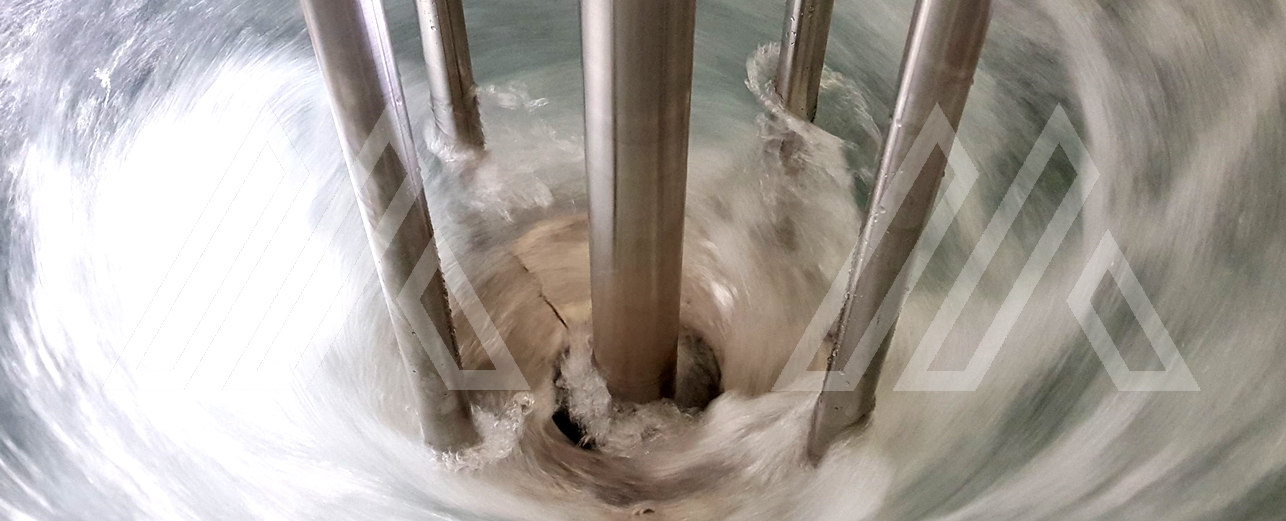

MISCIBLE Impellers Calculation-3

MISCIBLE Impellers Calculation-3 Products: Max.Viscosity 200 CPS Max.SG. 1.28 Rheology : Non-Newtonian / Plastic Flow 6-STEP FOR AGITATOR DESIGN STANDARD Step-1 : Volume Calculation Tank Dia.1100 mm x SH.1300 mm Total/Working Volume = 1,310L/1,000L Step-2 : Impeller Selection Impeller for Slurry : U Blade Impeller No. of Stages Design : 1 Stage d/D Design : 0.65 Buffle Plate : None Step-3 : Tip Speed Design Degree of Mixing : Medium Mixing Tip Speed Design : 3.15 m/sec Calculation Impeller Speed = 84 RPM Calculation Dia.of Impeller = 715 mm Step-4 : Power Absorb Calculation Power Calculation 0.67/1.5 kW Ne Number : 3.17E-3 Torque : 73.33 Nm Specific Power 0.674 kW/m^3 Step-5 : Shaft Calculation Design Shaft Type : Solid Shaft Diameter : 50 mm Shaft Length : 1,250 mm Steady Bearing Design : Free Staring Torque : 170.03 Nm Overhung Load : 88.45 N Bending Moment : 106.44 Nm Bending Tension : 88.17 kp/cm^2 Torsion Tension : 70.62 kp/cm^2 Step-6 : Hydraulic Data Calculation Reynolds Number : 4.58E+3 Pumping Capacity : 843.81 m^3/Hr P-Number : 683.01 Quality Number : 40.78 สถาพร เลี้ยงศิริกูล Miscible Technology Co.,Ltd.

MISCIBLE Impellers Calculation-2

Impellers Calculation-2 Products: Max.Viscosity 1 CPS Max.SG. 0.9 Rheology : Newtonian Fluid 6-STEP FOR AGITATOR DESIGN STANDARD Step-1 : Volume Calculation Tank Dia.1400 mm x SH.1600 mm Total/Working Volume = 2,340L/2,000L Step-2 : Impeller Selection Impeller for Slurry : Saw Disc Impeller No. of Stages Design : 2 Stages d/D Design : 0.25 Buffle Plate : 4EA Step-3 : Tip Speed Design Degree of Mixing : Medium Mixing Tip Speed Design : 18.0 m/sec Calculation Impeller Speed = 982 RPM Calculation Dia.of Impeller = 350 mm Step-4 : Power Absorb Calculation Power Calculation 8.037/11.0 kW Ne Number : 0.3 Torque : 78.62 Nm Specific Power 4.04 kW/m^3 Step-5 : Shaft Calculation Design Shaft Type : Solid Shaft Diameter : 75 mm Shaft Length : 1,650 mm Steady Bearing Design : Free Staring Torque : 213.91 Nm Overhung Load : 113.50 N Bending Moment : 272.40 Nm Bending Tension : 64.43 kp/cm^2 Torsion Tension : 25.30 kp/cm^2 Step-6 : Hydraulic Data Calculation Reynolds Number : 1.8E+6 Pumping Capacity : --- m^3/Hr P-Number : --- Quality Number : --- สถาพร เลี้ยงศิริกูล Miscible Technology Co.,Ltd.

MISCIBLE Impellers Calculation-1

Impellers Calculation-1 Products: Max.Viscosity 8,000 CPS Max.SG. 1.18 Rheology : Non-Newtonian / Thixotropy Flow (Time dependent) 6-STEP FOR AGITATOR DESIGN STANDARD Step-1 : Volume Calculation Tank Dia.2300 mm x SH.2700 mm Total/Working Volume = 2,540L/2,000L Step-2 : Impeller Selection Impeller for Slurry : Turbine6B Impeller No. of Stages Design : 1 Stage d/D Design : 0.55 Buffle Plate : None Step-3 : Tip Speed Design Degree of Mixing : Medium Mixing Tip Speed Design : 5.5 m/sec Calculation Impeller Speed = 84 RPM Calculation Dia.of Impeller = 1265 mm Step-4 : Power Absorb Calculation Power Calculation 19.485/22.0 kW Ne Number : 5.96E-3 Torque : 2241.13 Nm Specific Power 1.94 kW/m^3 Step-5 : Shaft Calculation Design Shaft Type : Solid Shaft Diameter : 100 mm Shaft Length : 2,750 mm Steady Bearing Design : Free Staring Torque : 5060.22 Nm Overhung Load : 1485.96 N Bending Moment : 4012.88 Nm Bending Tension : 416.58 kp/cm^2 Torsion Tension : 262.74 kp/cm^2 Step-6 : Hydraulic Data Calculation Reynolds Number : 3.27E+2 Pumping Capacity : 11,543.04 m^3/Hr P-Number : 1028.89 Quality Number : 18.11 สถาพร เลี้ยงศิริกูล Miscible Technology Co.,Ltd.
