MISCIBLE Impellers Calculation-3
Products:
Max.Viscosity 200 CPS
Max.SG. 1.28
Rheology : Non-Newtonian / Plastic Flow

6-STEP FOR AGITATOR DESIGN STANDARD

Step-1 :
Volume Calculation
Tank Dia.1100 mm x SH.1300 mm
Total/Working Volume = 1,310L/1,000L

Step-2 :
Impeller Selection
Impeller for Slurry : U Blade Impeller
No. of Stages Design : 1 Stage
d/D Design : 0.65
Buffle Plate : None

Step-3 :
Tip Speed Design
Degree of Mixing : Medium Mixing
Tip Speed Design : 3.15 m/sec
Calculation Impeller Speed = 84 RPM
Calculation Dia.of Impeller = 715 mm

Step-4 :
Power Absorb Calculation
Power Calculation 0.67/1.5 kW
Ne Number : 3.17E-3
Torque : 73.33 Nm
Specific Power 0.674 kW/m^3

Step-5 :
Shaft Calculation
Design Shaft Type : Solid
Shaft Diameter : 50 mm
Shaft Length : 1,250 mm
Steady Bearing Design : Free
Staring Torque : 170.03 Nm
Overhung Load : 88.45 N
Bending Moment : 106.44 Nm
Bending Tension : 88.17 kp/cm^2
Torsion Tension : 70.62 kp/cm^2

Step-6 :
Hydraulic Data Calculation
Reynolds Number : 4.58E+3
Pumping Capacity : 843.81 m^3/Hr
P-Number : 683.01
Quality Number : 40.78

สถาพร เลี้ยงศิริกูล
Miscible Technology Co.,Ltd.


Tags

ผู้เชี่ยวชาญด้าน Agitator, Mixing Tank, Mixer, Disperser, Homogenizer, High Shear Mixer, Air Mixer, Impellers design, เครื่องกวน, เครื่องผสม, ถังผสม, ใบกวน, ใบผสม, การออกแบบเครื่องกวน, การออกแบบถังผสม, ออกแบบระบบ SCADA, ออกแบบระบบ PLC, ออกแบบระบบอัตโนมัติสำหรับโรงงานอุตสาหกรรม, ตู้ MDB, ตู้ MCC,งาน EPC เครื่องกลไฟฟ้า


Blogs

-

MISCIBLE Impellers Calculation-2

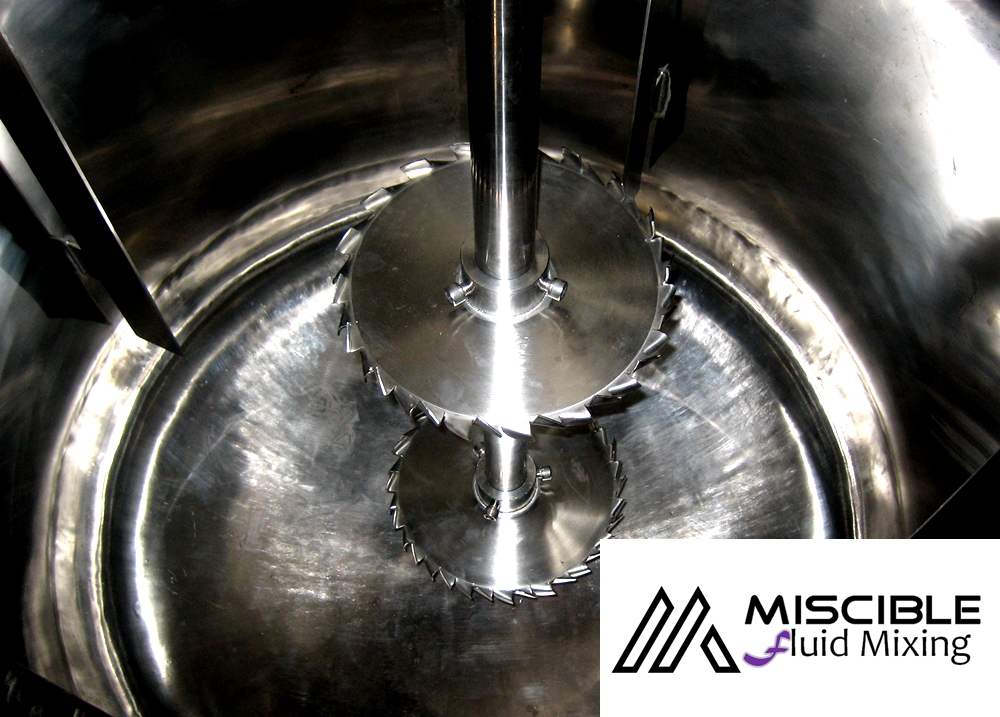

Impellers Calculation-2 Products: Max.Viscosity 1 CPS Max.SG. 0.9 Rheology : Newtonian Fluid 6-STEP FOR AGITATOR DESIGN STANDARD Step-1 : Volume Calculation Tank Dia.1400 mm x SH.1600 mm Total/Working Volume = 2,340L/2,000L Step-2 : Impeller Selection Impeller for Slurry : Saw Disc Impeller No. of Stages Design : 2 Stages d/D Design : 0.25 Buffle Plate : 4EA Step-3 : Tip Speed Design Degree of Mixing : Medium Mixing Tip Speed Design : 18.0 m/sec Calculation Impeller Speed = 982 RPM Calculation Dia.of Impeller = 350 mm Step-4 : Power Absorb Calculation Power Calculation 8.037/11.0 kW Ne Number : 0.3 Torque : 78.62 Nm Specific Power 4.04 kW/m^3 Step-5 : Shaft Calculation Design Shaft Type : Solid Shaft Diameter : 75 mm Shaft Length : 1,650 mm Steady Bearing Design : Free Staring Torque : 213.91 Nm Overhung Load : 113.50 N Bending Moment : 272.40 Nm Bending Tension : 64.43 kp/cm^2 Torsion Tension : 25.30 kp/cm^2 Step-6 : Hydraulic Data Calculation Reynolds Number : 1.8E+6 Pumping Capacity : --- m^3/Hr P-Number : --- Quality Number : --- สถาพร เลี้ยงศิริกูล Miscible Technology Co.,Ltd.
