MISCIBLE Impellers Calculation-2
Products:
Max.Viscosity 1 CPS
Max.SG. 0.9
Rheology : Newtonian Fluid

6-STEP FOR AGITATOR DESIGN STANDARD

Step-1 :
Volume Calculation
Tank Dia.1400 mm x SH.1600 mm
Total/Working Volume = 2,340L/2,000L

Step-2 :

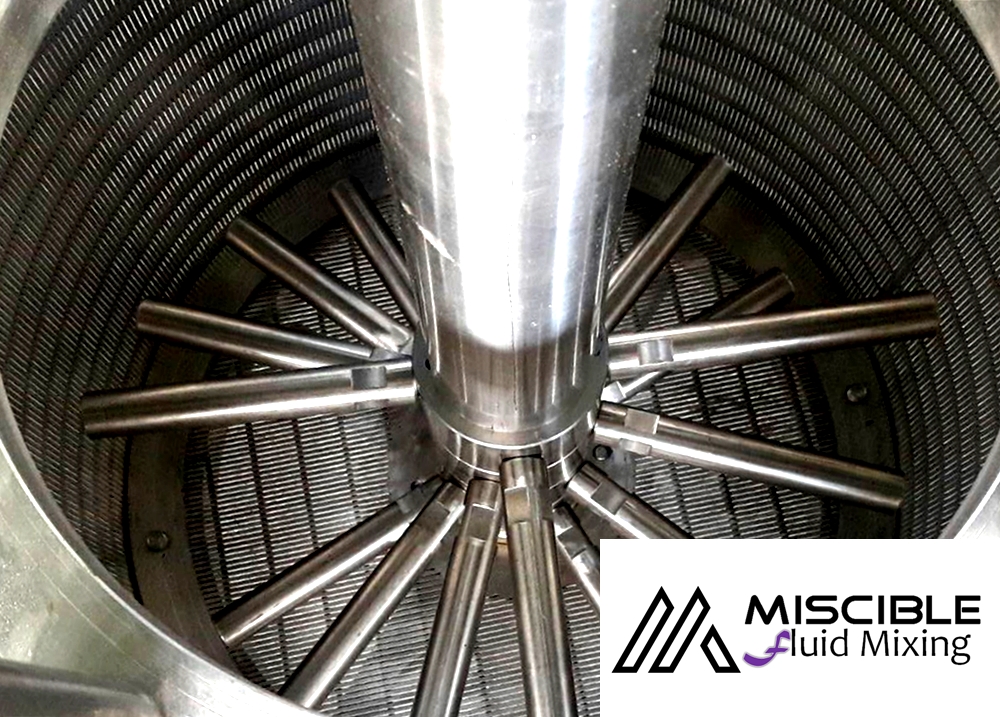

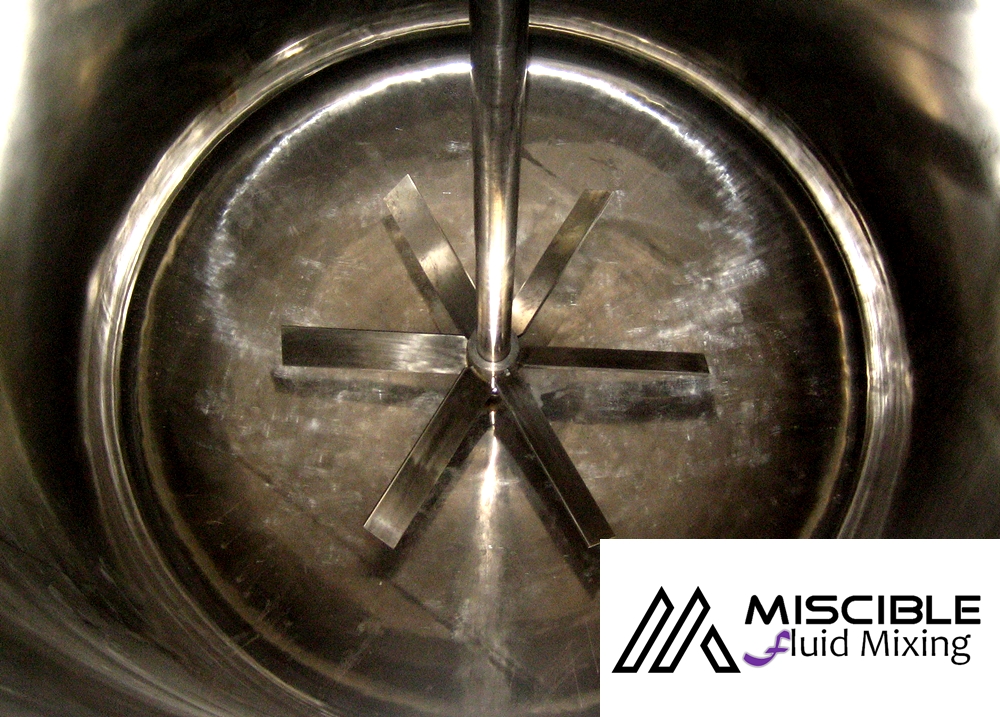

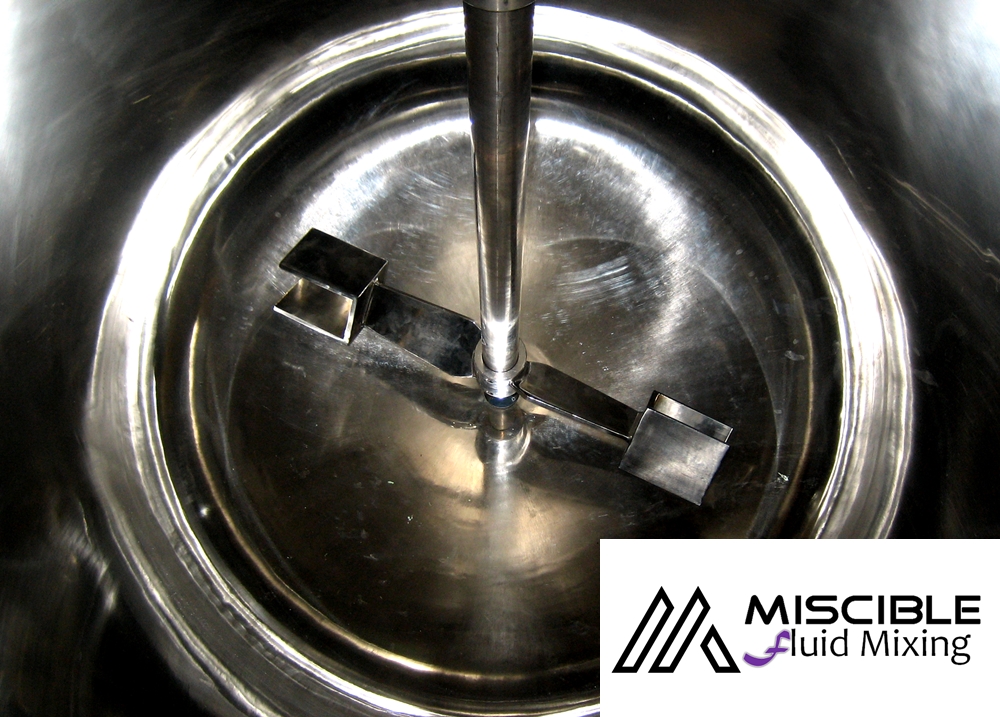

Impeller Selection
Impeller for Slurry : Saw Disc Impeller
No. of Stages Design : 2 Stages
d/D Design : 0.25
Buffle Plate : 4EA

Step-3 :
Tip Speed Design
Degree of Mixing : Medium Mixing
Tip Speed Design : 18.0 m/sec
Calculation Impeller Speed = 982 RPM
Calculation Dia.of Impeller = 350 mm

Step-4 :
Power Absorb Calculation
Power Calculation 8.037/11.0 kW
Ne Number : 0.3
Torque : 78.62 Nm
Specific Power 4.04 kW/m^3

Step-5 :
Shaft Calculation
Design Shaft Type : Solid
Shaft Diameter : 75 mm
Shaft Length : 1,650 mm
Steady Bearing Design : Free
Staring Torque : 213.91 Nm
Overhung Load : 113.50 N
Bending Moment : 272.40 Nm
Bending Tension : 64.43 kp/cm^2
Torsion Tension : 25.30 kp/cm^2

Step-6 :
Hydraulic Data Calculation
Reynolds Number : 1.8E+6
Pumping Capacity : --- m^3/Hr
P-Number : ---
Quality Number : ---

สถาพร เลี้ยงศิริกูล
Miscible Technology Co.,Ltd.
